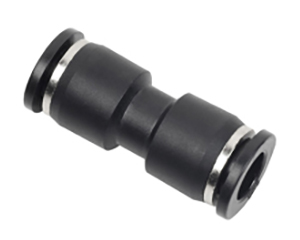

12mm O.D to 12mm O.D tube union straight push to connect fitting is used to connect 12mm plastic tubings. The body of 12mm O.D tube is made of PBT plastic. The tubing connection can be 12mm PU tubing, 12mm nylon tubing, 12mm teflon tubing and 12mm PE tubing.
| Specification of 12mm O.D to 12mm O.D Tube Union Straight Push to Connect Fitting |
|
| Part Nymber: PU 12 |
 |
| Push in Tube O.D: 12mm |
|
| Body Material: PBT Plastic | |
| Sealing, O-ring: NBR |
|
| Lock Claw: Stainless Steel |
|
| Fluid Admitted: Air, Vacuum, Water* |
|
| Working Pressure: 0∽1.0MPa | 0∽150psi | |
| Proof Pressure: 3.0Mpa | 435psi | |
| Negative Pressure: -100Kpa | -29.5 In Hg | |
| Working Temperature: 0∽60°C | 32∽140°F | |
| Applicable Tube: PU/PA/PE/PVC/PTFE... | |
| *Not intended for use in potable water systems, no freezing | |
