Brass Pipe Fittings - R, Rc, PT ,BSPT Thread | NPT Thread | G, BSP, BSPP Thread
Brass pipe fittings connect with pipe to transport air, flammable gases, water, slurries, and chemicals in residential and industrial plumbing applications. Nickel plated brass and natural brass can be selected, nickel plating is a surface treatment that improves durability and corrosion resistance.
Threaded connections include NPT (National Pipe Thread), BSPP (British Standard Pipe Parallel) or BSPT (British Standard Pipe Taper), and use PTFE tape to secure seal. The raw material of brass pipe fitting is strong, highly conductive, maintains machineability at high temperatures, and resists corrosion from water, heat, acids, minerals, and peaty soils.
Brass pipe fittings are available in various configurations, including adapter, bushing, cap, coupling, cross, elbow, nipple, nut, plug, tee, union, Y type and so on.
Threaded connections include NPT (National Pipe Thread), BSPP (British Standard Pipe Parallel) or BSPT (British Standard Pipe Taper), and use PTFE tape to secure seal. The raw material of brass pipe fitting is strong, highly conductive, maintains machineability at high temperatures, and resists corrosion from water, heat, acids, minerals, and peaty soils.
Brass pipe fittings are available in various configurations, including adapter, bushing, cap, coupling, cross, elbow, nipple, nut, plug, tee, union, Y type and so on.
Specification of Brass Pipe Fittings | Shape of Brass Pipe Fittings |
Body: Nickel Plated Brass | ![]() |
Thread: Nickel Plated Brass | |
Fluid Admitted: Air, Vacuum, Water* | |
Working Pressure: 0∽1.0MPa | 0∽150psi | |
Proof Pressure: 3.0Mpa | 435psi | |
Negative Pressure: -100Kpa | -29.5 In Hg | |
Working Temperature: -30∽110°C | 22∽230°F | |
*Not intended for use in potable water systems, no freezing |
Thread Connection

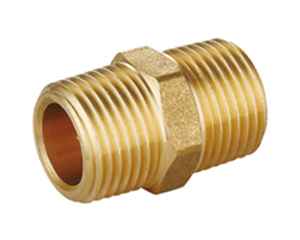

SCMM | Hex. Nipple

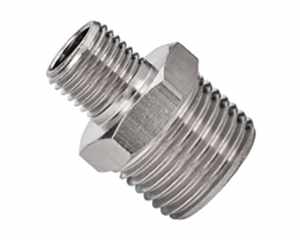

SCMR | HEX. Nipple Reducer

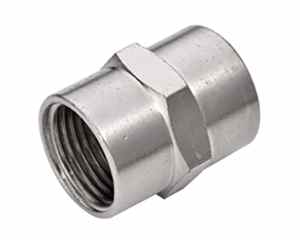

SCFF | Female Coupling

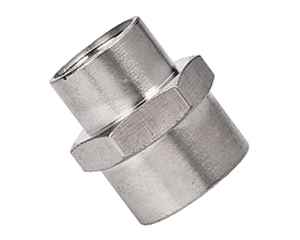

SCFF | Female Coupling Reducer

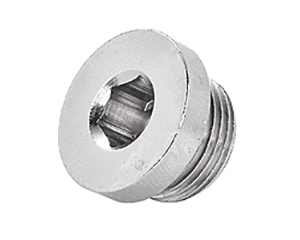

SPHM | Inner Hex. Plug

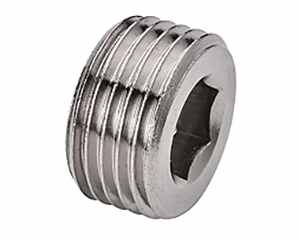

SPIM | Internal Hex. Male Plug

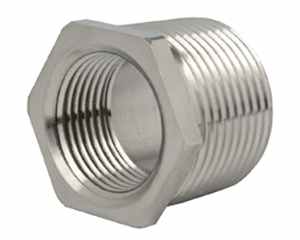

SRHF | Male to Female Reducing Bushing

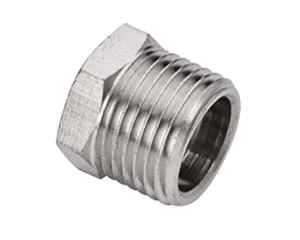

SPPM | Male Plug

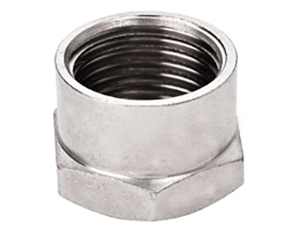

SPPF | Female Cap

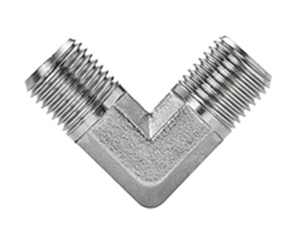

SLMM | Male Elbow

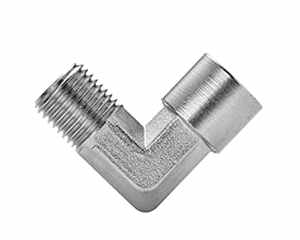

SLMF | Male to Female Elbow

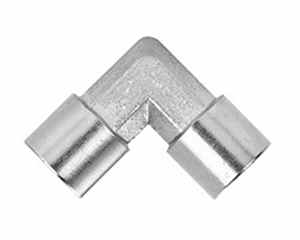

SLFF | Female Elbow

SBMM | Female Elbow

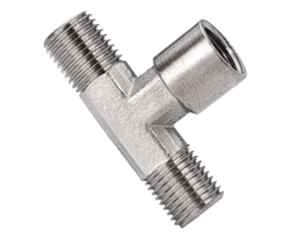

SBMF | Male to Female Tee

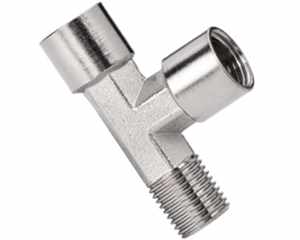

SDFM | Male to Female Run Tee

SBFM | Fmale to Male Tee

SDMF | Female to Male Run Tee

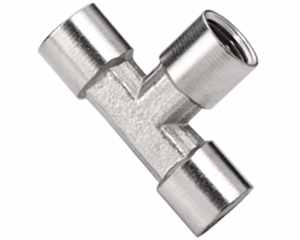

SBFF | Female Tee

SYMF | Male to Female Y

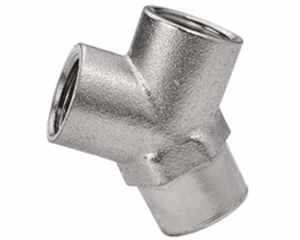

SYFF | Female Y

SCMB | Male Barb

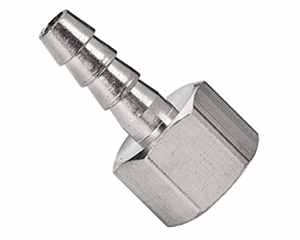

SCFB | Female Barb

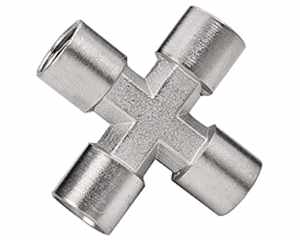

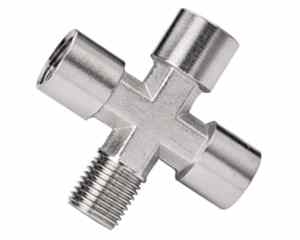

SZFF | Female Cross
