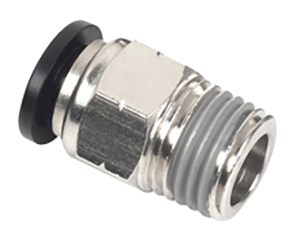

3/8 inch O.D to 1/4 NPT thread male connector push to connect fitting connects a inline plastic tubing to a female threaded port. The stainless steel collet design ensures superior clamping with various types. Male straight one touch tube fitting is widely used in pneumatic applications.
| Specification of 3/8" O.D to 1/4 NPT Thread Male Connector Push to Connect Fitting |
|
| Part Nymber: PC 3/8-N02 |
 |
| Push in Tube O.D: 3/8" |
|
| Thread Size: 1/4 NPT |
|
| Body Material: Nickel Plated Brass | |
| Thread Material: Nickel Plated Brass | |
| Sealing, O-ring: NBR |
|
| Lock Claw: Stainless Steel |
|
| Fluid Admitted: Air, Vacuum, Water* |
|
| Working Pressure: 0∽1.0MPa | 0∽150psi | |
| Proof Pressure: 3.0Mpa | 435psi | |
| Negative Pressure: -100Kpa | -29.5 In Hg | |
| Working Temperature: 0∽60°C | 32∽140°F | |
| Applicable Tube: PU/PA/PE/PVC/PTFE... | |
| *Not intended for use in potable water systems, no freezing | |
