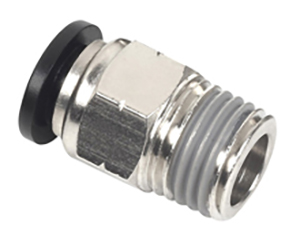

12mm O.D to R, PT, BSPT 1/2 thread male connector push to connect fitting is used for connecting 12mm O.D tubing and a R 1/2 female threaded port in the same direction. Used to connect 12mm pneumatic plastic tubings in compressed air circuits.
| Specification of 12mm O.D to R, PT, BSPT 1/2 Thread Male Connector Push to Connect Fitting |
|
| Part Nymber: PC 12-04 |
 |
| Push in Tube O.D: 12mm |
|
| Thread Size: R 1/2 | PT 1/2 | BSPT 1/2 |
|
| Body Material: Nickel Plated Brass | |
| Thread Material: Nickel Plated Brass | |
| Sealing, O-ring: NBR |
|
| Lock Claw: Stainless Steel |
|
| Fluid Admitted: Air, Vacuum, Water* |
|
| Working Pressure: 0∽1.0MPa | 0∽150psi | |
| Proof Pressure: 3.0Mpa | 435psi | |
| Negative Pressure: -100Kpa | -29.5 In Hg | |
| Working Temperature: 0∽60°C | 32∽140°F | |
| Applicable Tube: PU/PA/PE/PVC/PTFE... | |
| *Not intended for use in potable water systems, no freezing | |
